Q 140
Single-familyPartasQ100 Line
165 m² living3 bedrooms3 bathroomsSingle-storey17.3 × 14.8 m footprint

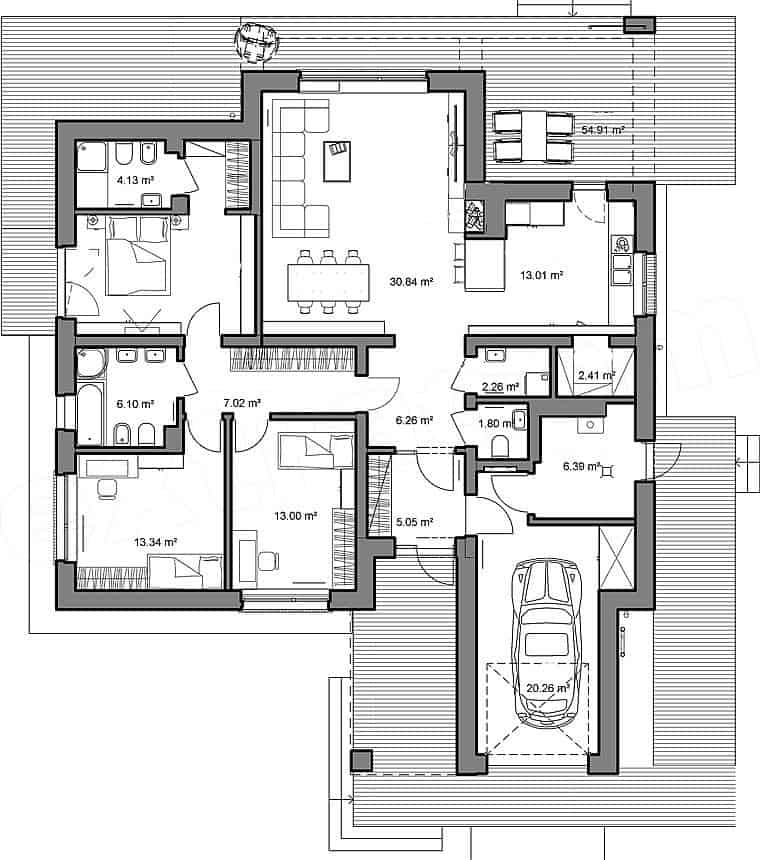

Floor Plans
165 m² of living space + 54.91 m² outdoors
- Entrance / anteroom5.05 m²
- Hallway6.26 m²
- Hallway 27.02 m²
- Living room with dining area30.84 m²
- Kitchen13.01 m²
- Pantry2.41 m²
- Master bedroom—
- Bathroom4.13 m²
- Bathroom 26.1 m²
- Bedroom13.34 m²
- Bedroom 213 m²
- Laundry2.26 m²
- WC1.8 m²
- Technical room6.39 m²
- Garage20.26 m²
Outdoor
- Terrace54.91 m²
Plot
Will Q 140 fit your plot?
Enter your plot size. The house is drawn to scale and you can drag it around.
Quick pick
✋ Drag the house around the plot
✓It fitsSmallest distance 3.8 m · 7.7 m of width left along the street
Site coverage
0.34
often allowed 0.3–0.4
Garden left
494 m²
of a 750 m² plot
A rough check based on the house's external dimensions. Exact distances and site coverage are set by your local zoning plan.

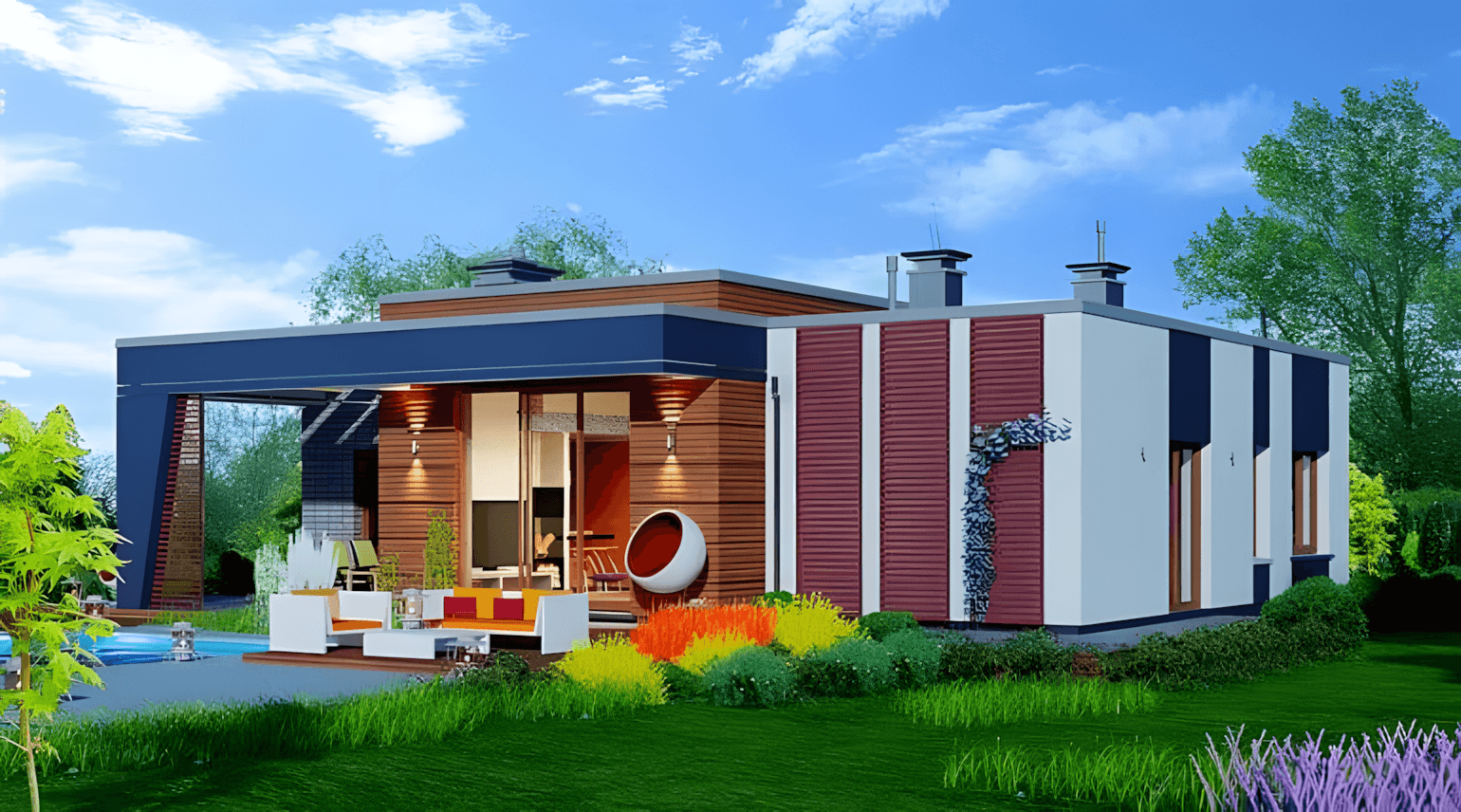

About Q 140
Q 140 is a single-storey house with a flat roof manufactured by Partas: 165 m² net and 210 m² gross area, three bedrooms, two bathrooms and a separate toilet. Next to the kitchen is a pantry, and the living room with dining room continues to the terrace.
In the auxiliary part of the house there is a laundry room, a technical room and a garage, so everything takes place on one floor.
The load-bearing structure is made of laminated timber with cellulose fiber insulation. The flat roof is made with a waterproofing film, and the manufacturer offers a heat pump and a photovoltaic system next to it. The floor plan of the house is 17.3 × 14.8 m, and the plot should be at least 22.7 × 25.3 m.
Specifications
Size
Area (net / gross)
165 m² / 210 m²
External dimensions
17.3 x 14.8 m
Building height
5.05 m
Minimum plot dimensions
25.3 x 22.7 m
Floors
Ground floor
Rooms
Bedrooms
3
Bathrooms
3
Construction
House type
Single-family
Construction method
Timber frame
Roof type
Flat
Roof pitch
2°
Model series
Q100 Line
Certificates
Check the list of official certificates that confirm the quality of materials and high construction standards.
About the manufacturer
Partas
Partas is a leader in Croatia that offers low-energy houses built using innovative methods
Partas is a leader in Croatia that offers low-energy houses built using innovative methods, achieving exceptional energy efficiency and environmental sustainability. Our houses are made with prefabricated components using a dry construction process, enabling occupancy within two months of the start of construction. One of the key advantages of Partas low-energy houses is their financial profitability. Our low-energy prefabricated houses are equipped with energy-efficient features and competitively priced, making them more affordable than standard houses. In doing so, affordability does not compromise on quality. On the contrary, our houses use high-quality and sustainable materials. Partas strives to be at the forefront of innovation in the field of energy efficiency. Our houses provide the possibility of integrating renewable energy sources such as Dimplex and SLG diesel heat and photovoltaic solar panels (solar power plants), which further improves energy efficiency and reduces environmental impact. Longevity is also one of the features of our low-energy prefabricated houses. With a lifespan of around 150 years, with proper maintenance, they represent a sustainable solution for homeowners looking for a long-term quality housing solution. By using premium materials such as laminated wood, CLT (cross laminated wood), ISO CELL insulation and Gutex wood fibre panels, we ensure the structural integrity and energy efficiency of your homes.
Established
2011
Homes built
101 - 500
Employees
16 - 50
Delivery area
All: Croatia and Slovenia
